Rectifier Omega XL 2.0 - Ifheight is a challenge

Application:

Individual use for processeswhere controlled DC power supplies are needed. Electrolytic SpecialApplications and Plating Processes.

Product Description:

High-efficient, ultra-compactswitching mode rectifier in modern low-floor design. This easy-to-servicerectifier is a complete modular device designed as a ready-to-go system togenerate high DC quality. The rectifier is integrated in a robust premiumcoated steel sheet cabinet. DC output is achieved via copper bus bars at thebackside of the device.

If height is a challenge pleasetake a look at our PowerCabinetNano Design in low-floor design.

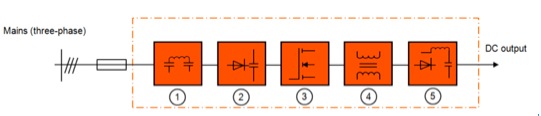

Block Diagram:

The switch-mode rectifier isfeatured with the following five functions:

High-frequent disturbances arereduced in the mains filter (1). On the other hand the mains filter is used todampen the interference voltages. The mains rectifier converts the voltage intoDC voltage (2). The power electronics (3) then convert the DC voltage pulsewidth modulated into a staircase-shaped alternating voltage. The internaltransformer (4) stands for a galvanic potential separation and voltageadjustment on the secondary side. On the output side rectification is achievedby fast power diodes (5). On the output side a constantly smoothed and fullycontrollable DC voltage is generated.

Customer Benefits:

The constant low ripple of<3 % in the total control range allows the universal operation of this rectifierin low-floor design for various electroplating applications.

The rectifier is designed forremote control via analogue signals Profibus.

The integration of the rectifierin a robust and premium coated steel sheet cabinet guarantees an optimalprotection according to IP 54.

Technical Data:

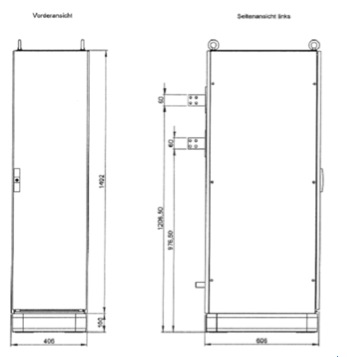

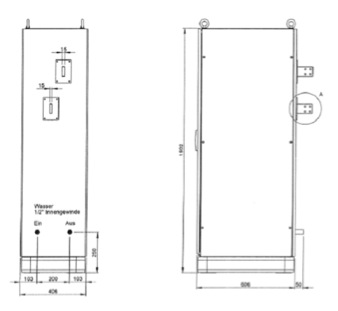

Drawing:

Interfaces:
